The Ultimate Kalamazoo Power Chuck

KCM 3-Jaw  Wedge Type Power chucks

Made In The Usa

Model KCA5-6-46-3 KCA6-8-52-3 KCA6-10-75-3 KCA8-10-75-3 KCA8-12-85-3 KCA8-15-120-3 KCA11-15-120-3 KCA11-18-120
Thru-Hole 1.181 2.04 2.95 2.95 3.34 4.72 4.72 4.72
Jaw Stroke
(On Diameter)		 .22 .29 .35 .35 .35 .44 .44 .44
Piston Stroke .51 .66 .78 .78 .78 .98 .98 .98
Chucking
Dia. Max		 5.84 7.44 9.00 9.00 10.80 13.50 13.50 16.19
Chucking
Dia. Min.		 .47 .82 1.04 1.04 1.96 2.92\5 2.95 2.95
Gripping
Force (lbs)		 10,560 17,600 24,200 24,200 30,800 39,600 39,600 39,600
Max. Draw
Pull (lbs.)		 4,950 6,000 9,600 9,600 11,200 15,400 15,400 15,400
Max. RPM 6,000 5,000 4,000 4,000 3,200 2,500 2,500 2,000
Weight (lbs) 29 52 85 85 154 290 274 397

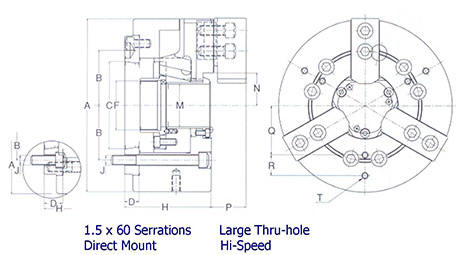

Dimensional Data & Specifications
Chuck
Size		 KCA5-6-46-3 KCA6-8-52-3 KCA6-10-75-3 KCA8-10-75-3 KCA8-12-85-3 KCA8-15-120-3 KCA11-15-120-3 KCA11-18-120
A 6.50 8.25 10 10 12 15 15 18
B 2.06 2.62 2.62 3.37 3.37 3.37 4.62 4.62
C A5 A6 A6 A8 A8 A8 A11 A11
D .86 .68 1.20 .98 1.18 2.36 1.37 1.37
F M55xP1.5 M60xP1.5 M85xP2.0 M85xP2.0 M93xP2.0 M130xP2.0 M130xP2.0 M130xP2.0
H 3.54 4.09 5.05 4.84 5.31 7.48 6.49 6.49
J 6-M10 6-M12 6-M16 6-M16 6-M16 6-M20 6-M20 6-M20
M 1.181 2.04 2.95 2.95 3.34 4.72 4.72 4.72
N (Max.) 1.27 1.55 2.04 2.04 2.36 3.12 3.12 3.12
N  (Min.) 1.16 1.40 1.87 1.87 2.18 2.90 2.90 2.90
P 1.25 1.62 1.73 1.73 2.12 2.55 2.55 5.22
Q 1.77 2.36 3.14 3.14 3.34 3.93 3.93 4.72
R .98 .98 1.18 1.18 1.77 2.36 2.36 2.95
T 6-M8 deep 12 6-M8deep15 6-M12deep18 6-M12deep18 6-M16deep20 6-M16deep25 6-M16deep25 6-M16deep25
